Board variables ​

Board variables are String Field, Boolean, Integer, or Float attributes added to a board. These types appear in the Variables group of the Add attribute menu because Arcscript treats them as variables scoped to that board.

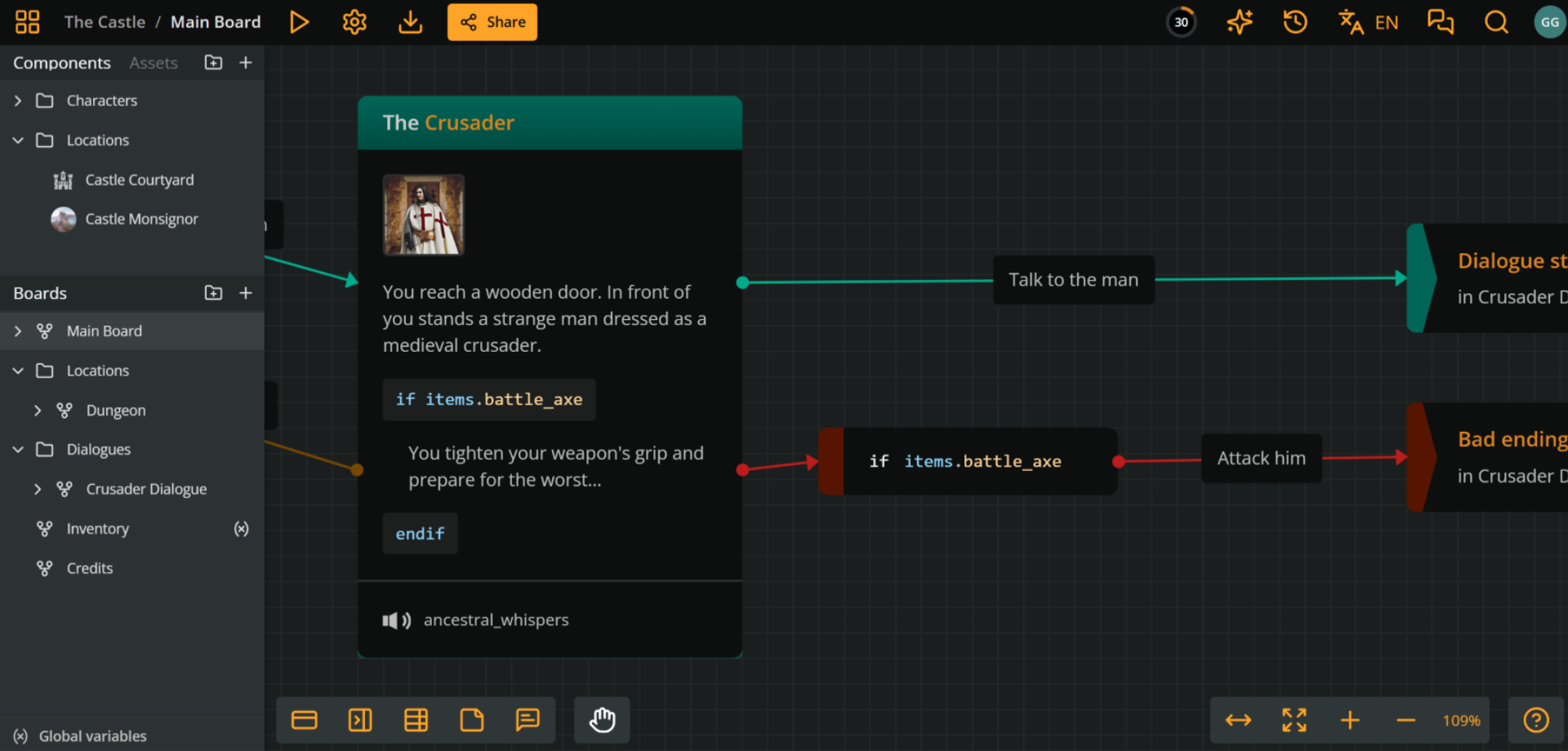

Arcweave project environment showing an element and a branch that both include the board variable "items.battle_axe"

Use a board variable from anywhere in the project by joining the board's custom ID and the variable's custom ID with a dot:

arcscript
castle.drawbridge_open = true

Unqualified names resolve global variables only. For example, health and castle.health can coexist and store different values.

Create board variables ​

  1. Right-click a regular board in the Boards section of the sidebar.
  2. Select Attributes to open the Board attributes dialog.
  3. Add a String Field, Boolean, Integer, or Float from the Variables group.
  4. Enter the variable's label and initial value.

The board already has a custom ID generated when the board was created. Arcweave generates the variable's custom ID from its label. Their Arcscript reference appears as board_custom_id.variable_custom_id.

Board folders cannot contain attributes or variables.

Use board variables ​

Board variables can be read and changed from anywhere in the project. Their board custom ID is a namespace, not an access restriction.

See Common use cases for assignment, branch, and dynamic-text examples.

Edit board and variable custom IDs ​

The board's custom ID appears below the title of the Board attributes dialog. Select it to edit the scope used by all variables on that board.

To edit a variable's custom ID, open its three-dot menu and select Edit Custom ID. The variable label is for people reading the project; its custom ID is the member name used in Arcscript.

Renaming either the board or attribute custom ID updates existing Arcscript references automatically. Custom IDs cannot be empty and must follow the variable naming rules.

Manage board variables ​

Boards with attributes display an attributes button next to their name in the sidebar. Select it to open the Board attributes dialog directly. From there, you can:

  • Search and filter attributes.
  • Drag variables to reorder them.
  • Rename a variable or edit its custom ID from its three-dot menu.
  • Delete a variable from its three-dot menu.

See Attributes for full instructions.

Find and debug board variables ​

Project Search can find a board variable by its label or custom ID and open the Board attributes dialog for its owning board.

In Play Mode, the Debugger groups board variables under the board's name and custom ID and shows their current values.

See Play Mode > Debugger for full instructions.
